Description
T200-P1-W-V2-L99040-O30 with gasket
T600-N1-W-V2-L99040-G70 without gasket
The product designation contains all information on the characteristics and performance of the references.
Click here for the legend of the PRODUCT DESIGNATION

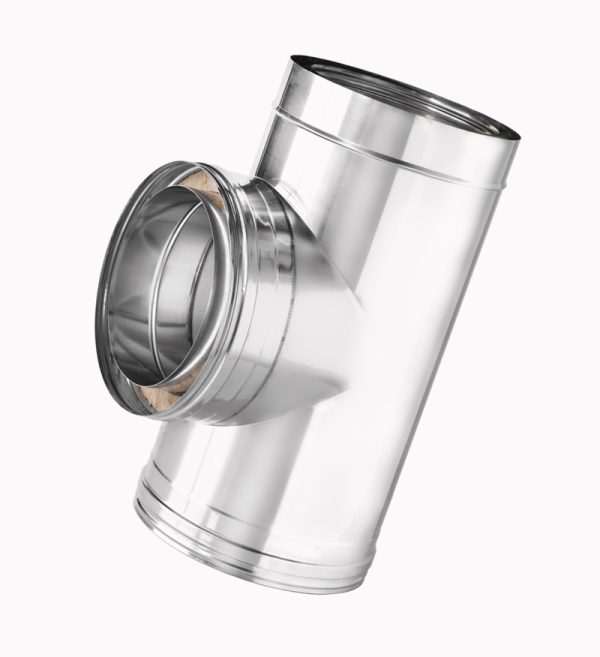

Smart TWO 25
Single and double wall
Double wall insulated chimney system for outdoor. Internal wall is in stainless steel AISI 444 thickness 0.4 mm. Outer wall is in stainless steel AISI 441 thickness 0.4 mm. Insulation with 25 mm thick rock wool needle, at 90 kg / m³ density. The working temperature up to 200 ° C with the use of silicone gaskets or 600 ° C without gasket.
The range consists of 324 references. It is available in diameters from 80 to 350 mm and three finishes: stainless steel, copper and corten-coloured.
Click here to download the pdf of this section
Click here to download the certification of this product
